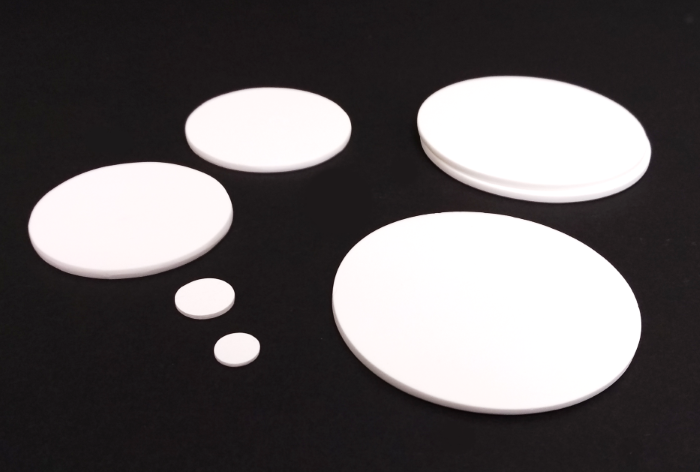

Monolithic Silica Filter



<< Features >>
– Made of 99.9% quartz silica of monolith.
– Low pressure profiles and high specific surface area.
– hydrophilic or hydrophobic surface applicable to be coated with various functional materials.
– Soft type: high surface area, both through pore and small pore.
– Hard type: low surface area, no small pore, to suppress specific adsorption.

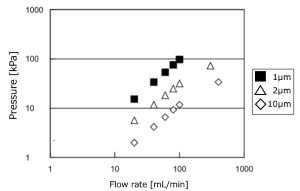

Pressure profiles in flow of nitrogen gas
Filter size: Φ 7 x 2mm, temp. : 25 ℃

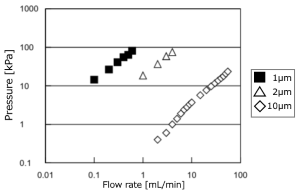

Pressure profiles in flow of water
Filter size: Φ 7 x 2mm, temp. : 25 ℃



<< Customization table of the filter: bulk size and pore profiles >>

For customization of the filter, bulk sizes and diameters of the through pore and small pore of monolithic silica are in table.

Filter Φ
[mm]
Soft Hard
Through pore Φ [µm] Small pore Φ [nm] Through pore Φ [µm] Small pore Φ [nm]
Φ1~Φ20 0.1*, 0.5**, 1, 2, 5, 10, 20 2, 5, 10, 15, 20, 30, 50, 100 0.1, 0.5, 1, 2, 5, 10 w/o small pore
Φ20~Φ30 0.5, 1, 2, 5, 10, 20 10, 15, 20, 30, 50 0.5, 1, 2, 5, 10
Φ30~Φ60 0.8, 1, 2, 5 10, 15, 20, 30 0.5, 1, 2
Φ60~Φ100 1, 2, 3, 5 15, 20, 30 0.5, 1, 2
Φ100~Φ120 1, 2, 3, 5 15, 20, 30 0.5, 1, 2

Please specify the diameter and the thickness by 1 mm.
・Maximum thickness: Soft = 100 mm, Hard = 10 mm.
・The pore sizes in table are the peak top of the through pore and the small
pore, which are distributed up to ± 100% from the peak top.
* For 0.1 µm, 50 nm and 100 nm are not supported.
** For 0.5 µm, 100 nm is not supported.



This is a correlation diagram of through pore diameter, small pore diameter and porosity.
The controllable range is within the hatched area.
Correlation between porosity and small pore is approximate.
